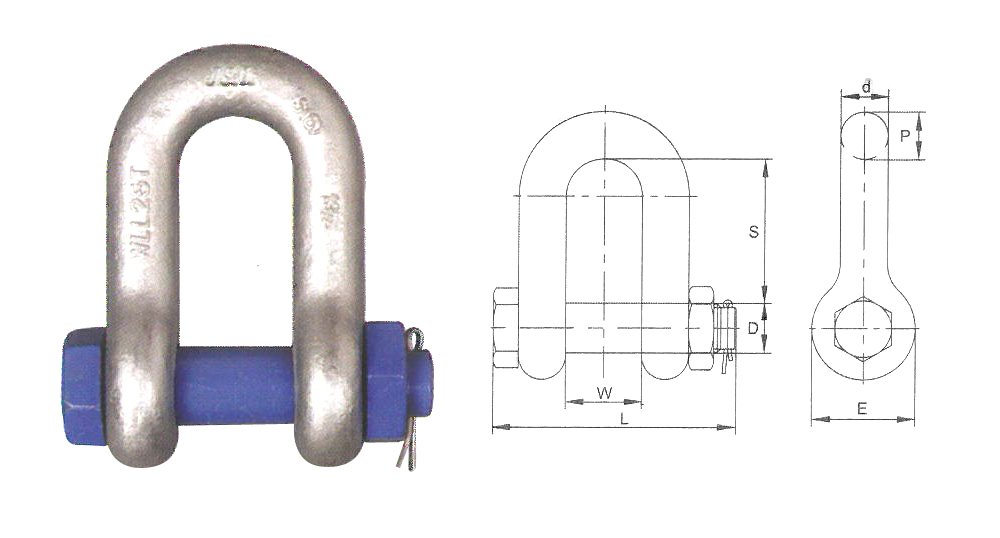

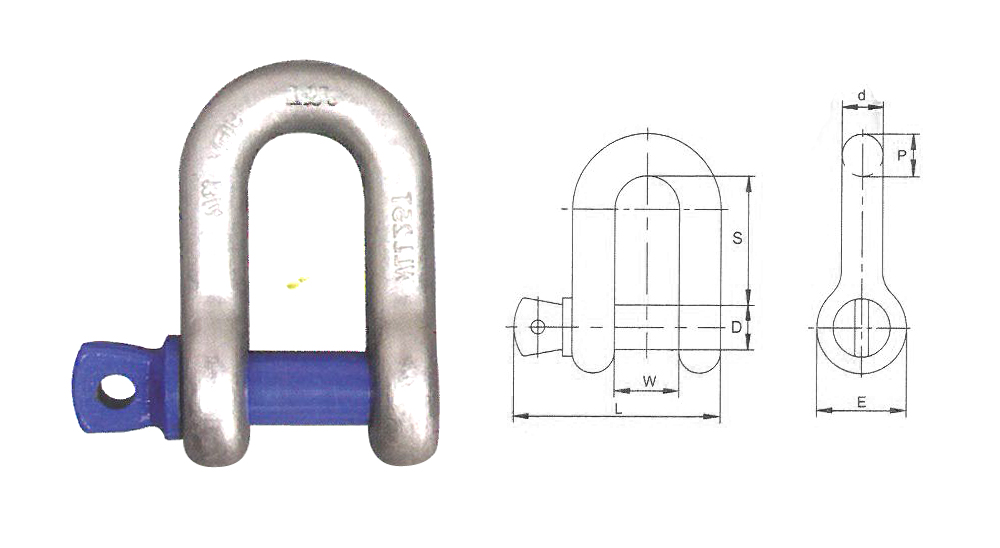

T8 grade D shape shackle
Material: Forged from high-quality alloy structural steel.
Rated load: 2t~175t
Features:
The maximum test load is 2 times the rated working load, and the minimum breaking load is 4 times the rated working load.
2t~80tT8 grade shackles are 40%~100% higher than the same size S6 grade shackles; 110t~175tT8 grade shackles are 16%~29% higher than the same size S6 grade shackles
T8 shackles with the same rated load are reduced in size compared to S6 shackles, but their rated load and function are not lost, and are mainly used in places with limited space
Product standard: meet the technical requirements and testing methods stipulated in 1S02415-2004.
Rated load: 2t~175t
Features:
The maximum test load is 2 times the rated working load, and the minimum breaking load is 4 times the rated working load.
2t~80tT8 grade shackles are 40%~100% higher than the same size S6 grade shackles; 110t~175tT8 grade shackles are 16%~29% higher than the same size S6 grade shackles
T8 shackles with the same rated load are reduced in size compared to S6 shackles, but their rated load and function are not lost, and are mainly used in places with limited space
Product standard: meet the technical requirements and testing methods stipulated in 1S02415-2004.
